Set up the DevTools panel

Add two plugins and a Lit panel appears inside Vite DevTools with a timeline, a component tree and an update explainer. Dev-only and off by default.

Not on Vite, or inspecting production?

The Lit Inspector extension puts the same panel in Chrome and Firefox DevTools for any site. See Inspect any site with Lit Inspector.

Install @vitejs/devtools

Vite DevTools is the browser overlay from @vitejs/devtools that hosts plugin panels. The Lit panel is one of those panels, so the overlay has to be there first.

npm install -D @vitejs/devtools

Enable the panel

timeline: true injects the recording runtime into the page. DevTools() provides the host the panel docks into. You need both.

vite.config.ts

import {defineConfig} from 'vite';
import {litPlugin} from '@oddsquad/vite-plugin-lit';
import {DevTools} from '@vitejs/devtools';

export default defineConfig({
  plugins: [litPlugin({timeline: true, sourceOverlay: true}), DevTools()],
});

sourceOverlay: true is optional. The Components tab needs it to pick an element by pointing at it on the page.

Prefer to leave the config alone? Both options also read from the environment, so a personal .env.local works just as well.

.env.local

LIT_PLUGIN_TIMELINE=true
LIT_PLUGIN_SOURCE_OVERLAY=true

Experimental

timeline defaults to false while the panel is experimental. Everything it adds is dev-only and never reaches a production build. To inspect a production build anyway, see Production builds, and DevTools features by host for what works there.

Open it and record ten seconds

Start the dev server, open the page, and open the Vite DevTools overlay. Lit appears in the dock list with its own icon. The panel follows one page at a time: opening the app in a second tab switches to that tab and says so.

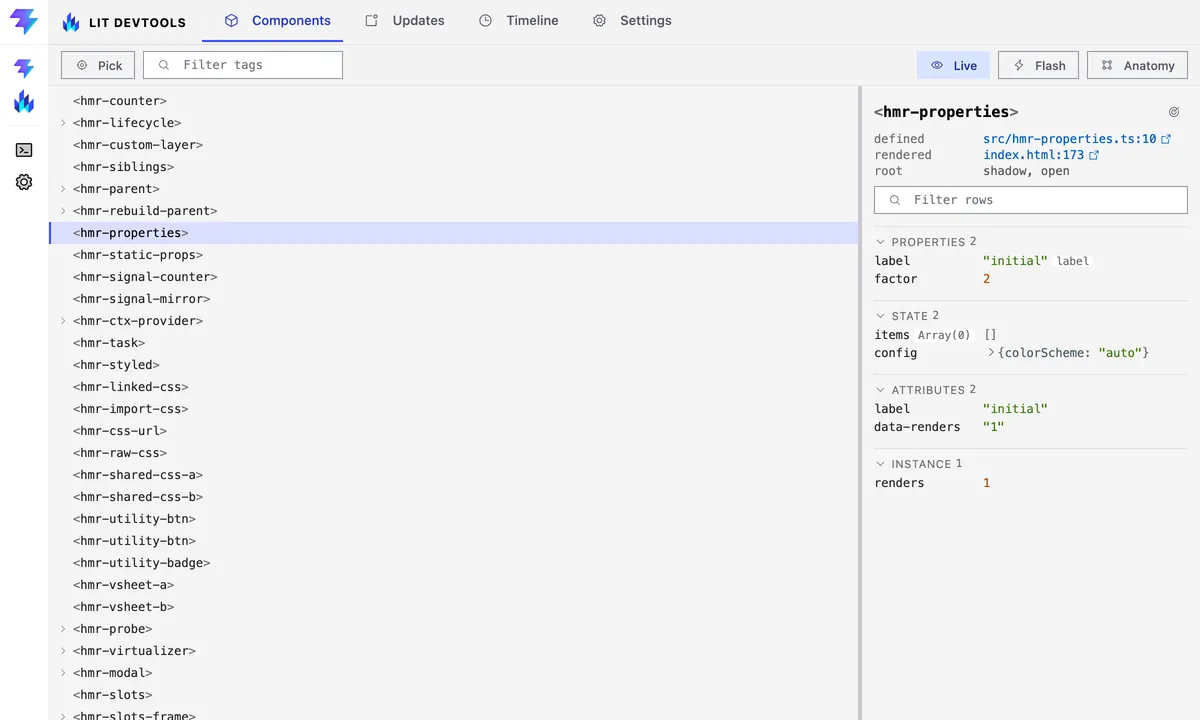

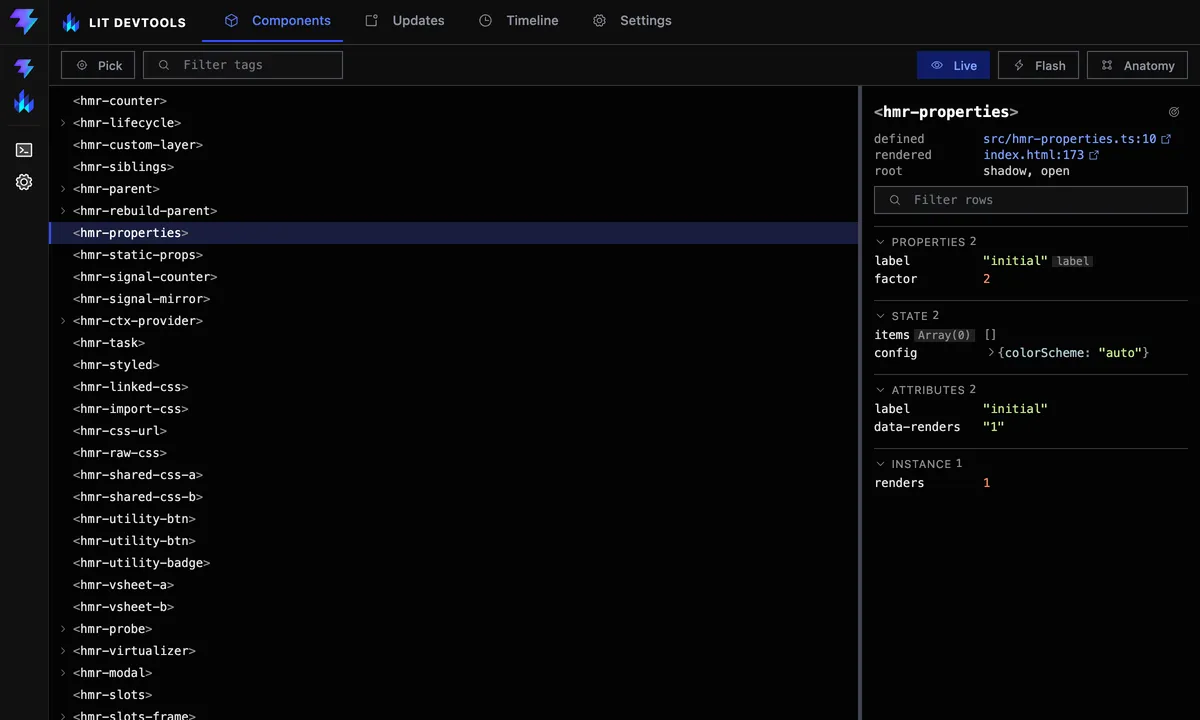

The panel opens on Components and carries four tabs.

• Components lists every Lit element on the page with its reactive state, and needs no recording. See Inspect live components.
• Updates answers which component re-rendered, how often, and why. See Find out why a component re-rendered.
• Timeline records lifecycle, render and input events in order. Press ▶ Record, click around for ten seconds, then press ⏹ Stop. See Record and read the timeline.
• Settings shows the resolved configuration and overrides part of it live.

Change settings live

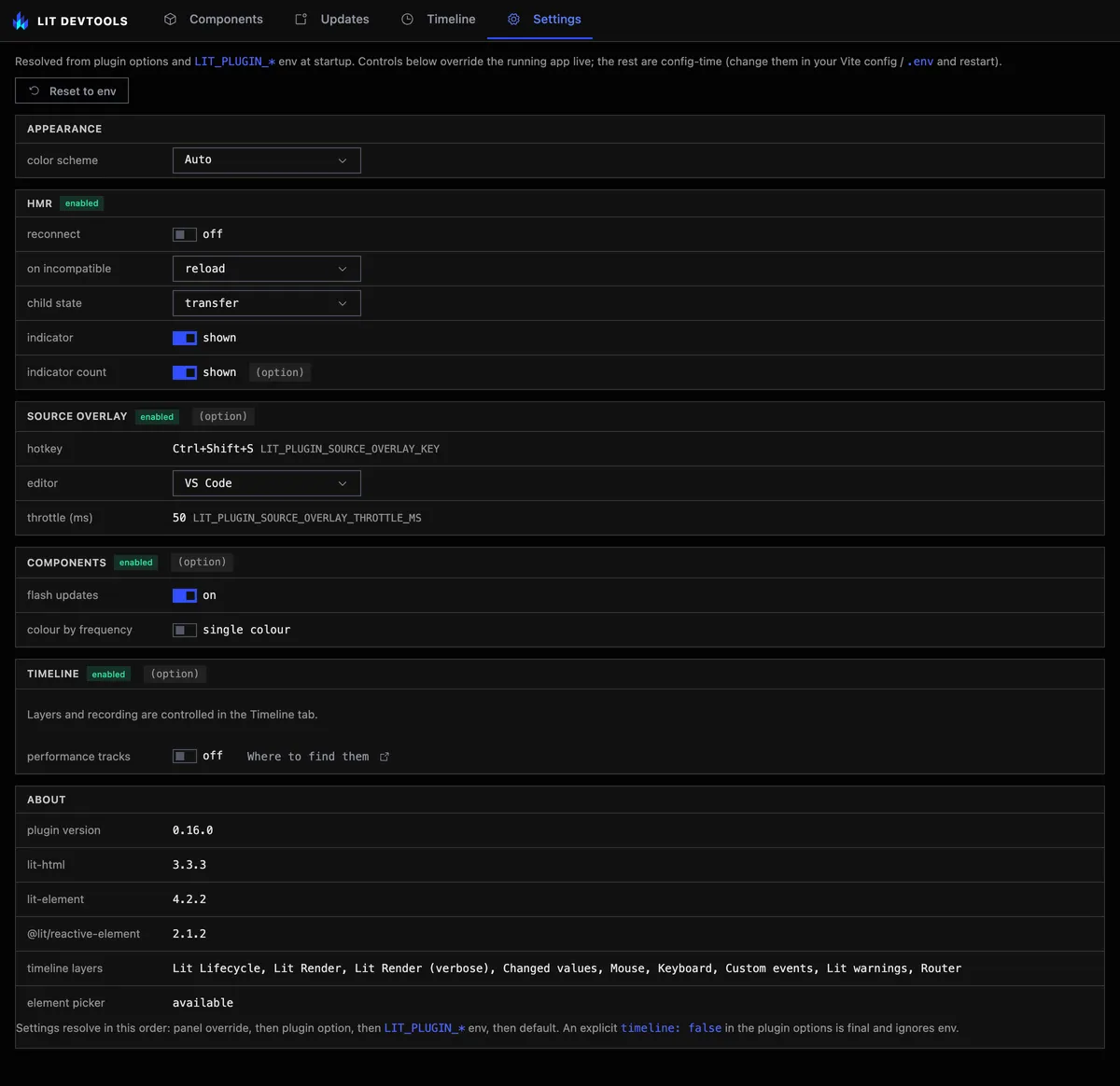

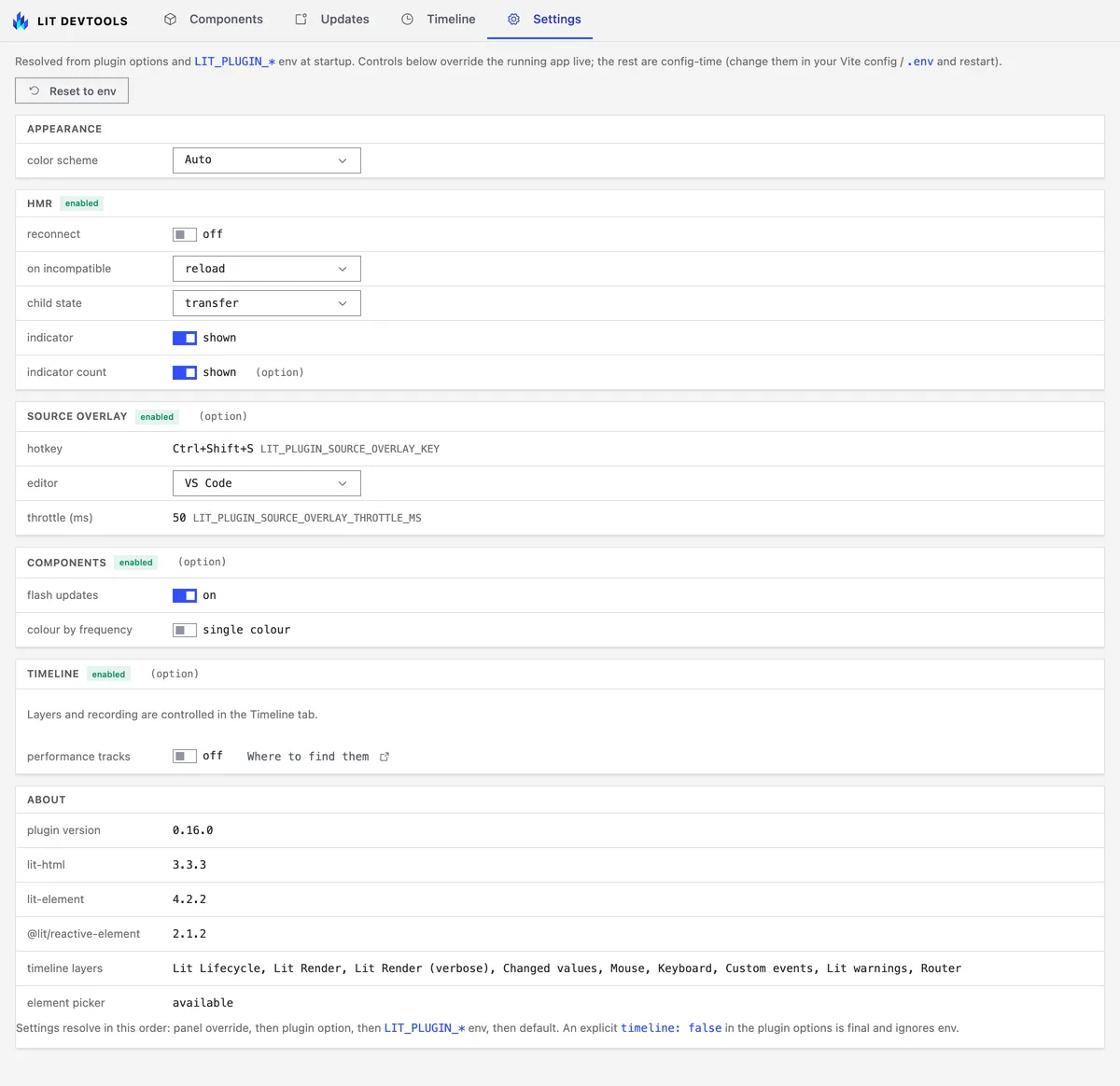

The Settings tab shows what the plugin actually resolved: litPlugin() options on top of LIT_PLUGIN_* environment variables on top of the defaults.

The HMR behaviour, the source-overlay editor and the Components tab’s own toggles are editable there. A change reaches the running page at once, with no dev-server restart and no edit to vite.config.ts. Reset to env drops your overrides and puts the resolved values back.

A value you set carries its origin in parentheses: (option) for litPlugin(), (env) for a LIT_PLUGIN_* variable. So Zed (env) means the editor came from your .env. A value with neither is the built-in default. The same goes for each section’s enabled or disabled pill, so HMR disabled (option) means litPlugin({hmr: false}) turned it off. Open a dropdown and the configured choice says where it came from, default included. When env or an option set it, the built-in default is tagged default too, so warn env sits beside reload default. Hovering a setting’s name explains it and gives its default. An overridden row names the value it replaced, such as env: Zed, and the small × beside it resets just that row. A custom editor object from litPlugin() shows as Custom (option) and can’t be switched from the panel.

If the value underneath an override has changed since you made it, say you switched the editor to Cursor and .env now says Zed, the row adds a line: Config changed since you overrode this: was VS Code, now Zed. Reset drops the override so the new value applies. Keep leaves it in place and stops the reminder until the config changes again. Overrides saved before this existed have nothing to compare against, so they never show it.

A setting whose feature is off at config time stays read-only. Its runtime was never injected into the page, so there is nothing there to change.

Your overrides and the panel’s light/dark choice persist per developer and never touch the repository; DevTools architecture explains where they live and why there are two copies.
